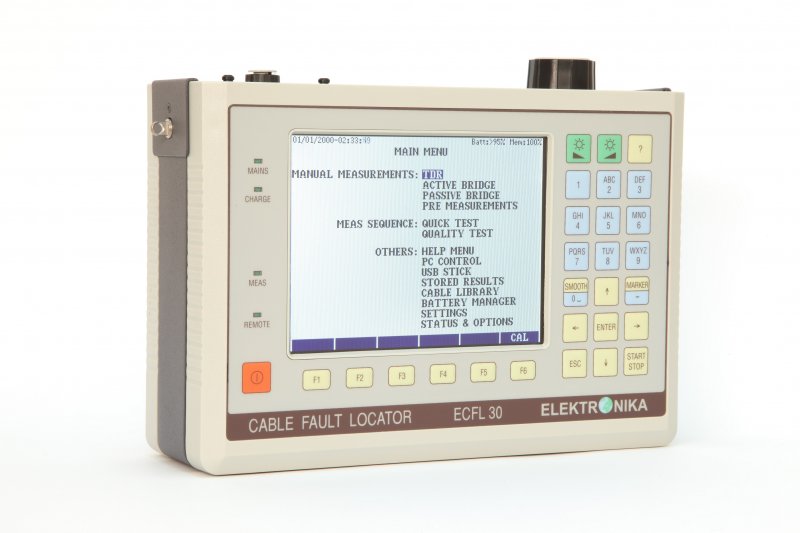

ECFL-30 Cable Fault Locator

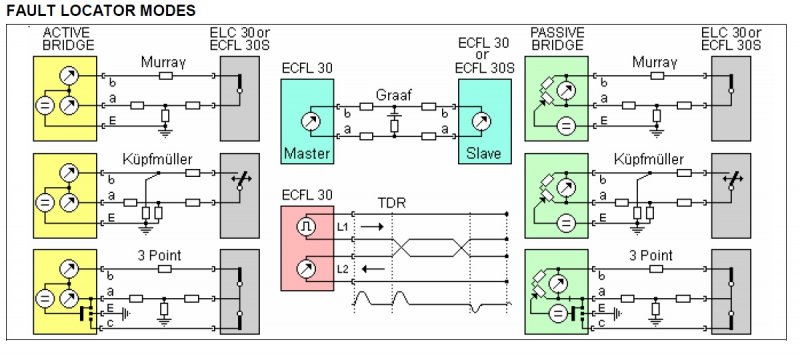

  • The ECFL30 telecommunication cable quality tester/fault locator combines four instruments in one:
    • Active bridge for the accurate location of faults where the level of disturbing voltages are low
    • Passive Wheatstone bridge for the location of faults where the level of disturbing voltages are high
    • Graaf fault locator for accurate fault location on totally water-soaked cable where the level of disturbing voltages are usually high and intermittent. This two ended test requires two instruments or an ECFL30 and an ECFL30S slave
    • TDR to find low impedance faults and splits causing cross talk between pairs
  • A cable survey test sequence can help determine the most appropriate test method to be used
  • The tester can perform:
    • Resistance measurements (loop, insulation and resistance difference)
    • Capacitance measurements (cable and capacitive balance)
    • DC fault location (Murray, 3 Point, Kupfmuller and Repeated Kupfmuller)
    • AC fault location (interruption and Repeated Kupfmuller)
    • Graaf fault location
    • TDR (single pair, double pair, crosstalk and comparison to memory)
    • AC-DC voltage measurements
    • Cable temperature measurement
  • The instrument offers easy to use menus with pre-defined automatic test sequences to simplify operation
  • It can remotely control far end devices (slave instrument or far end cable loop closing device) enabling one person to perform tests
  • Test results can be stored in memory for transfer to a USB stick or PC (requires PC software option to be purchased)
  • Optional single end line test software enables loss and data transfer speed estimation


Code Type Our Price:
ECFL-30 Telecommunication cable fault locator P.O.A Enquire

Hardware Options

Code Type Our Price:
ECFL-30-ELC30 Loop closing device P.O.A Enquire
ECFL-30-ECFL30S Intelligent slave device P.O.A Enquire
ECFL-30-ECA10 Coaxial cable adaptor P.O.A Enquire
ECFL-30-PT1000 Temperature probe P.O.A Enquire
ECFL-30-CIGAR Cigar lighter charger P.O.A Enquire

Software Options

Code Type Our Price:
ECFL-30-PC Result transfer to PC software P.O.A Enquire
ECFL-30-SSLT Single sided line test option P.O.A Enquire
ECFL-30-MCAB Multi-section cable option P.O.A Enquire
ECFL-30-LCAB Loaded cable option P.O.A Enquire
