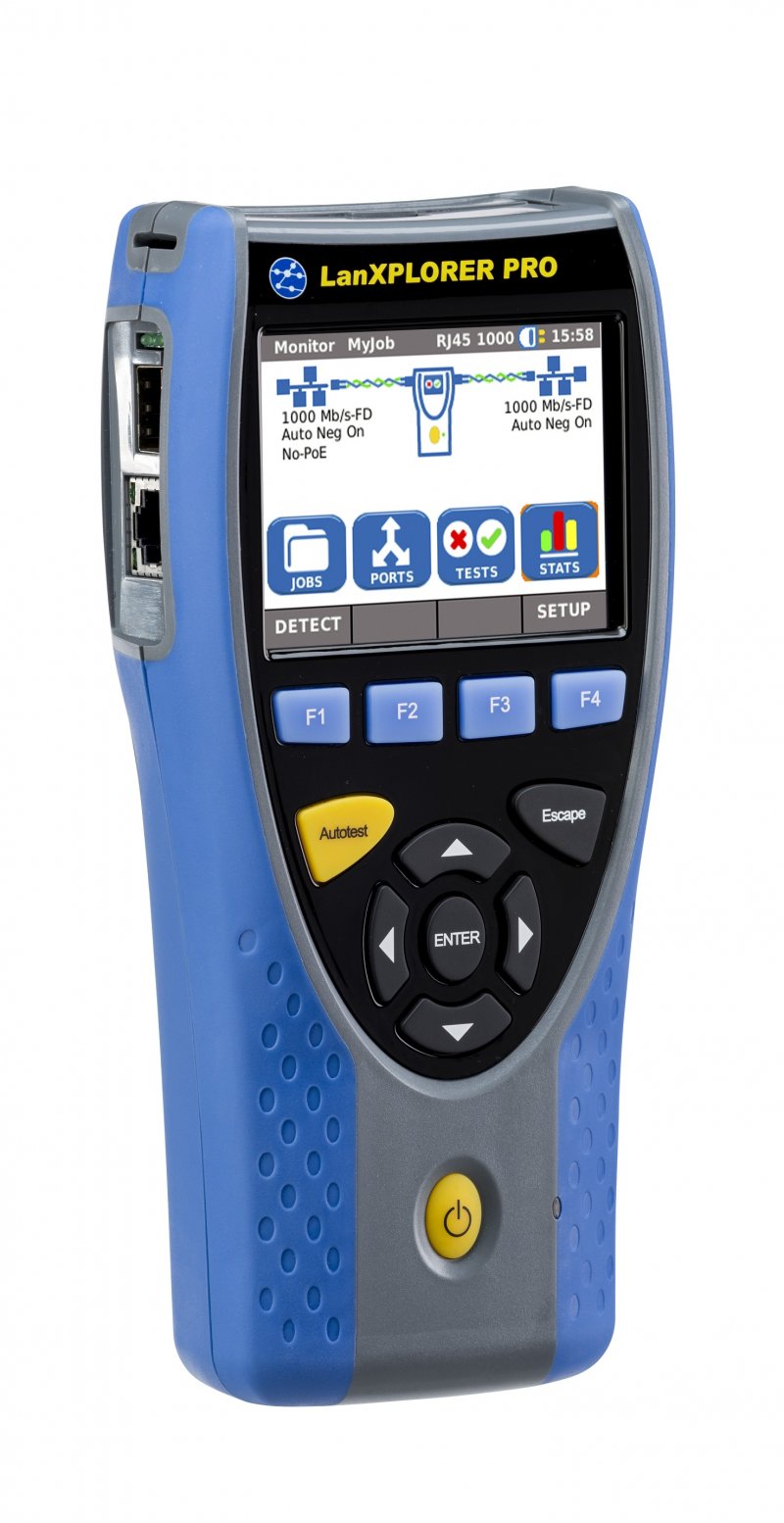

LanXPLORER Pro Ethernet Network Troubleshooter & Analyser With In-Line Capability

  • The LanXPLORER Pro is a handheld tester for the troubleshooting, analysis and diagnosis of problems in Ethernet networks, devices and cabling. It can access networks using copper, fibre and WiFi interfaces
  • The instrument can offer all of the functions of the NaviTEK NT Pro tester plus the following:
  • The instrument can perform tests in-line on copper networks (on fibre networks the tester can only be used at an end point). In-line copper tests include:
    • QOS of VOIP phones using SIP
    • Monitoring Ethernet traffic between two devices to diagnose problems
    • Identify top 10 talkers and listeners when troubleshooting bandwidth consumption
    • Traffic stats
    • VLAN detection
    • PoE monitoring (power used)
  • In addition to using the WiFi 2.4GHz 802.11b/g/n interface to connect to and troubleshoot the network the LanXPLORER Pro can perform a WiFi site survey:
    • Displaying access point ID, signal strength, channel and encryption status
    • Identifying causes of slow WiFi or connection issues such as overlapping channels or wrong SSID setup
    • Identifying top bandwidth users and overloaded access points
  • In end-point mode (copper, fibre and WiFi) the tester can perform:
    • Network discovery (display port ID of LLDP/CDP/EDP enabled switches, check 10/100/1000Mbps connectivity at the device location, verify network configuration (device IP/gateway address/subnet mask), identify IP address/name of router and number of hops between network points using traceroute test, ping network devices and website URLs
    • NETMAP performs a scan of the entire network to identify all active devices by IP address, MAC address and host name which can be saved and compared to future NETMAPs using the NETVERIFY function
    • Identifying sources of network conflicts such as duplicate IP addresses
    • Detection of devices infected with malware that are creating broadcast storms
    • PoE/PoE+ load testing
  • In addition to the above tests the instrument performs all of the NaviTEK NT Pro functions including the physical wiring wiremap check between a display and remote module. The wiremap routine checks the wiring schematic for faults such as crossed pairs, short circuits, opens, and split pairs. The length of the cable is also measured (or distance to fault)A tone generator function allows simple cable tracing to be performed (the kit includes a 62-164 amplifier probe)
  • The instrument features the Ideal Lifejack RJ45 inserts: when the test interface is worn or damaged you can simply replace it, extending the life of the instrument

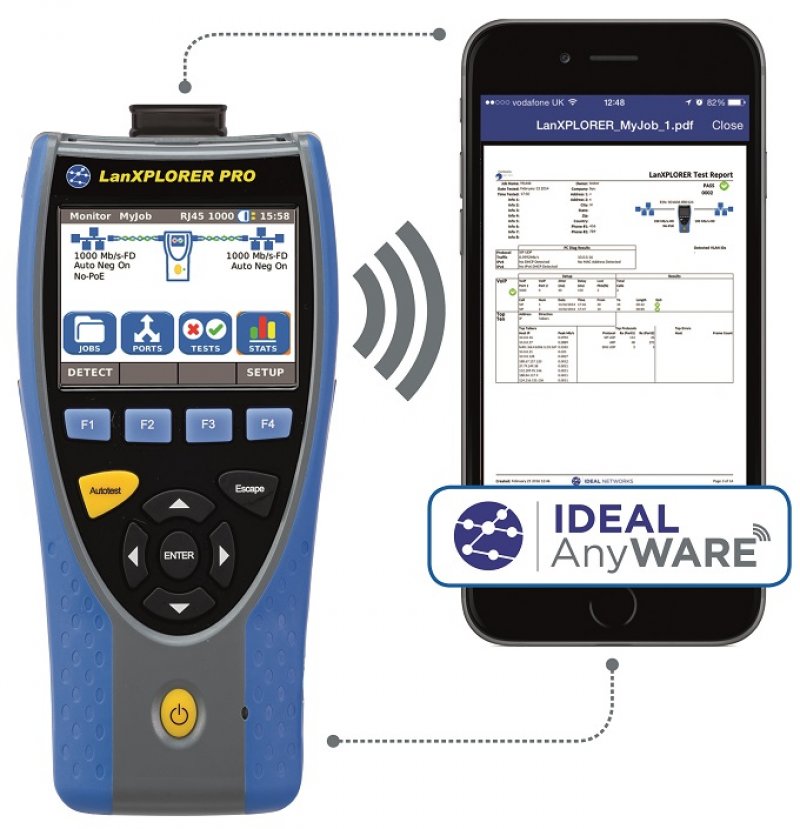

  • Up to 7,500 results can be stored. The WiFi adaptor allows results (pdf or csv files) to be transferred using the free Ideal AnyWARE app to your preferred storage platform (email, ftp, cloud etc). Alternatively you can transfer results to a USB device if you prefer
  • Three choices of result template are available (summary, brief and full) and can include company name, operator and logo along with job information
  • Supplied as a kit including display, one remote module, rechargeable battery, charger, 62-164 amplifier probe, WiFi adaptor, WiFi antenna and test leads in a soft carry case
  • To interface with fibre networks please buy an SFP to suit the system under test
  • The Ideal AnyWARE app is a free download
  • A set of additional wiremap remotes can be ordered to speed up testing of passive cabling
  • Please watch the introduction video below. If you have questions we are able to arrange a one-to-one online demonstration of this instrument with a member of our support staff at a time convenient to yourself. Please contact our sales team for information


Code Type Our Price:
LANXPLORER-NT-PRO Ethernet network troubleshooting tester P.O.A Enquire

Fibre Option

Code Type Our Price:
SFP-MGKSX1 1000Base-SX multimode SFP P.O.A Enquire
SFP-MGKLX2 1000Base-LX 1310nm singlemode SFP P.O.A Enquire
SFP-MGKZX3 1000Base-ZX 1550nm singlemode SFP P.O.A Enquire


Code Type Our Price:
NAVITEK-NT-REM-12 Set of 11 RJ45 remotes No 2-12 P.O.A Enquire
LIFEJACK Replacement Lifejack interfaces (pack of 10 and insertion tool) P.O.A Enquire
